Tie Rods by Continuous Threaded Bars
Updated: 19.10.2023
2 images

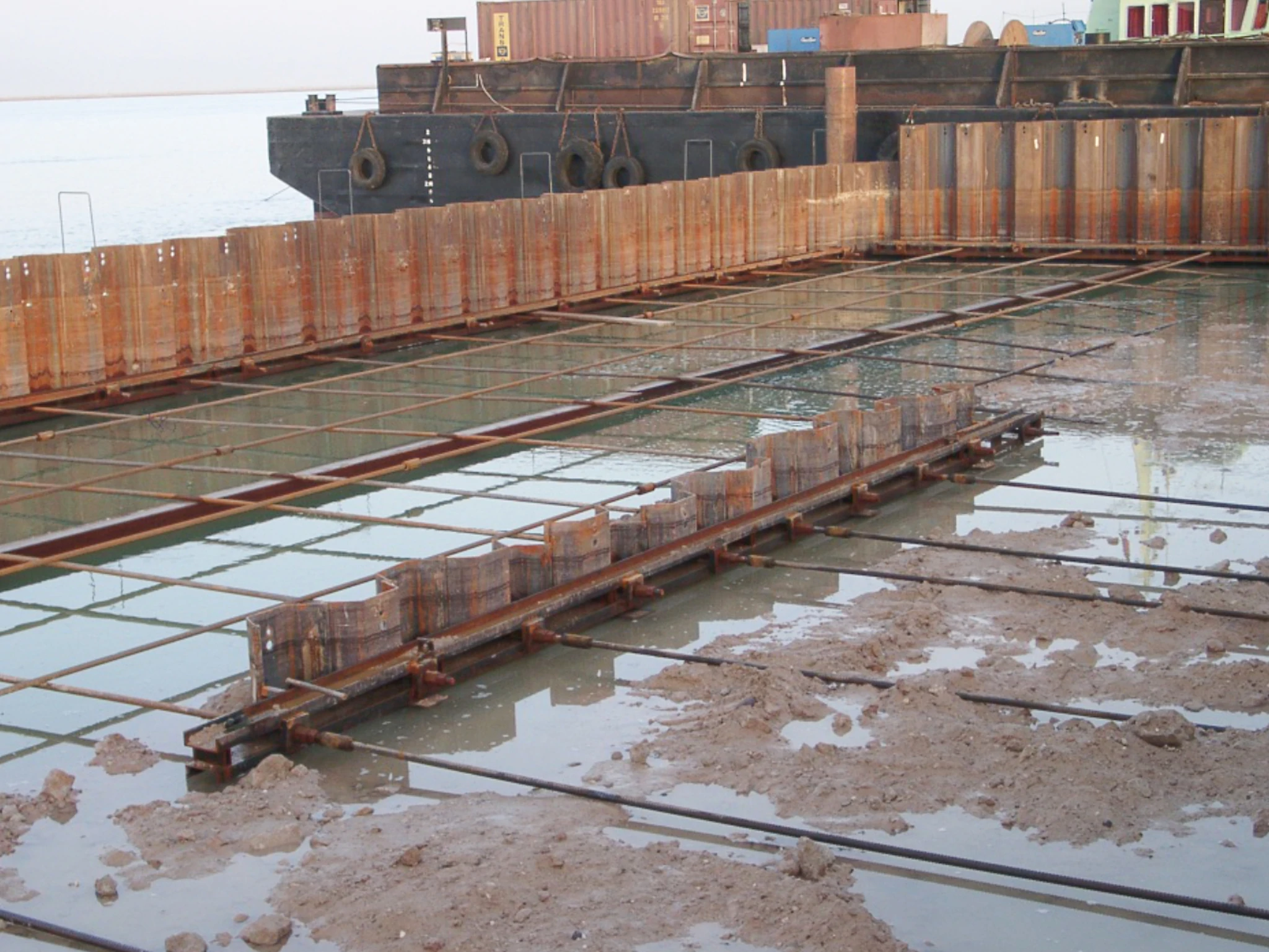

For marine tie application SAS thread bars are used as tie rods (horizontal tie rods between two sheet pile walls or as connection to dead man sheet piles) and as ground anchors for retaining walls (sheet piles, soldier piles and secant bore piles). Due to the continuous thread over the total length, cutting and coupling at any length of the installed tie rods is possible. Various accessories such as plates, nuts, couplers and turn buckles are available to meet different project requirements.
Main advantages:

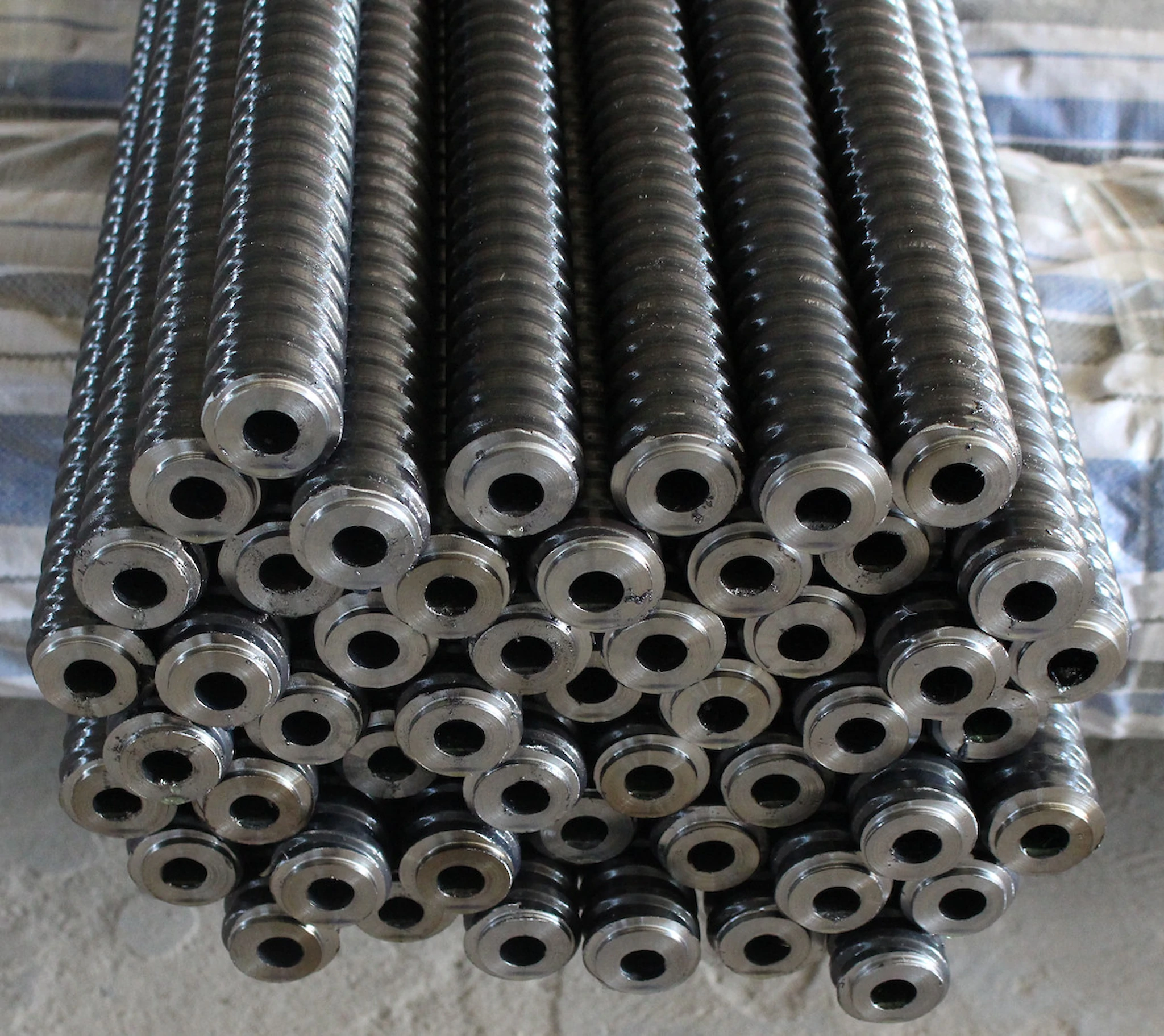

- High strength steel bars with continuous thread in steel quality SAS 670 grade 95
- Diameter range from 18-75 mm with working loads from 97-1691 kN
- Cutting or extending at any position possible
- Individual customized lengths available
- Wide range of accessories for different applications such as tie rods, anchors, soil nails, micropiles, tunnelling, etc
- All bars can be offered with different corrosion protection such as hot-dipped galvanized, epoxy coated, heat shrink sleeves, etc
- A large stock guarantees quick delivery
- ISO 9002 certified production
Not all accessories are available for all threadbar diameters. Please call for assistance. All threaded accessories are of grade S355J2G3, the plates are of grade S235JR. Bars and accessories can be supplied black, galvanized or epoxy coated.
Threadbars S 670 / 800 - grade 97
Model | Diameter | Yield load | Ultimate load | Cross section | Weight | Tensile resistance |
---|---|---|---|---|---|---|
mm | kN | kN | mm² | kg/m | ¹)min. (Ftg, Rd) | |
18 | 18 | 170 | 204 | 254 | 2.00 | 163.2 |
22 | 22 | 255 | 304 | 380 | 2.98 | 243.2 |
25 | 25 | 329 | 393 | 491 | 3.85 | 314.4 |
28 | 28 | 413 | 493 | 616 | 4.83 | 394.4 |
30 | 30 | 474 | 565 | 707 | 5.55 | 492.0 |
35 | 35 | 645 | 770 | 962 | 7.55 | 616.0 |
43 | 43 | 973 | 1,162 | 1,452 | 11.40 | 929.6 |
50 | 50 | 1,315 | 1,570 | 1,963 | 15.40 | 1,256.0 |
57.5 | 57.5 | 1,740 | 2,077 | 2,597 | 20.38 | 1,661.6 |
63.5 | 63.5 | 2,122 | 2,534 | 3,167 | 24.86 | 2,027.2 |
75 | 75 | 2,960 | 3,535 | 4,418 | 34.68 | 2,828.0 |
18 | |
---|---|
Diameter | 18 mm |
Yield load | 170 kN |
Ultimate load | 204 kN |
Cross section | 254 mm² |
Weight | 2.00 kg/m |
Tensile resistance | 163.2 ¹)min. (Ftg, Rd) |
22 | |
Diameter | 22 mm |
Yield load | 255 kN |
Ultimate load | 304 kN |
Cross section | 380 mm² |
Weight | 2.98 kg/m |
Tensile resistance | 243.2 ¹)min. (Ftg, Rd) |
25 | |
Diameter | 25 mm |
Yield load | 329 kN |
Ultimate load | 393 kN |
Cross section | 491 mm² |
Weight | 3.85 kg/m |
Tensile resistance | 314.4 ¹)min. (Ftg, Rd) |
28 | |
Diameter | 28 mm |
Yield load | 413 kN |
Ultimate load | 493 kN |
Cross section | 616 mm² |
Weight | 4.83 kg/m |
Tensile resistance | 394.4 ¹)min. (Ftg, Rd) |
30 | |
Diameter | 30 mm |
Yield load | 474 kN |
Ultimate load | 565 kN |
Cross section | 707 mm² |
Weight | 5.55 kg/m |
Tensile resistance | 492.0 ¹)min. (Ftg, Rd) |
35 | |
Diameter | 35 mm |
Yield load | 645 kN |
Ultimate load | 770 kN |
Cross section | 962 mm² |
Weight | 7.55 kg/m |
Tensile resistance | 616.0 ¹)min. (Ftg, Rd) |
43 | |
Diameter | 43 mm |
Yield load | 973 kN |
Ultimate load | 1,162 kN |
Cross section | 1,452 mm² |
Weight | 11.40 kg/m |
Tensile resistance | 929.6 ¹)min. (Ftg, Rd) |
50 | |
Diameter | 50 mm |
Yield load | 1,315 kN |
Ultimate load | 1,570 kN |
Cross section | 1,963 mm² |
Weight | 15.40 kg/m |
Tensile resistance | 1,256.0 ¹)min. (Ftg, Rd) |
57.5 | |
Diameter | 57.5 mm |
Yield load | 1,740 kN |
Ultimate load | 2,077 kN |
Cross section | 2,597 mm² |
Weight | 20.38 kg/m |
Tensile resistance | 1,661.6 ¹)min. (Ftg, Rd) |
63.5 | |
Diameter | 63.5 mm |
Yield load | 2,122 kN |
Ultimate load | 2,534 kN |
Cross section | 3,167 mm² |
Weight | 24.86 kg/m |
Tensile resistance | 2,027.2 ¹)min. (Ftg, Rd) |
75 | |
Diameter | 75 mm |
Yield load | 2,960 kN |
Ultimate load | 3,535 kN |
Cross section | 4,418 mm² |
Weight | 34.68 kg/m |
Tensile resistance | 2,828.0 ¹)min. (Ftg, Rd) |
