Delmag Hanging Leads (MH)
Delmag hanging leads are mounted to the boom tip of a crawler crane and supported at bottom by a hydraulic spotter to the crane chassis for forward and backward inclination. If requested hanging leads can be rotated around the vertical axis or be available as vertical travel leads.
| Model | MH 30102 | MH 32103 | MH 35104 | MH 37107 | MH 41109 | |
|---|---|---|---|---|---|---|
| Suitable diesel pile hammer (max. size) | D12-42 | D30-32 | D62-22 | D80-23 | D100-13 | |
| Lead system length max. | m | 20 | 30 | 36 | 42 | 48 |
| Usable length (with max. size hammer) | m | 14 | 24 | 30 | 36 | 40 |
| Weight complete * | kg | 3,000 | 8,000 | 10,000 | 26,000 | 30,000 |
| Recommended carrier (lifting capacity) | t | 40 | 60 | 100 | 130 | 300 |
| Delmag MH 30102 | |
|---|---|
| Suitable diesel pile hammer (max. size) | D12-42 |
| Lead system length max. | 20 m |
| Usable length (with max. size hammer) | 14 m |
| Weight complete * | 3,000 kg |
| Recommended carrier (lifting capacity) | 40 t |
| Delmag MH 32103 | |
| Suitable diesel pile hammer (max. size) | D30-32 |
| Lead system length max. | 30 m |
| Usable length (with max. size hammer) | 24 m |
| Weight complete * | 8,000 kg |
| Recommended carrier (lifting capacity) | 60 t |
| Delmag MH 35104 | |
| Suitable diesel pile hammer (max. size) | D62-22 |
| Lead system length max. | 36 m |
| Usable length (with max. size hammer) | 30 m |
| Weight complete * | 10,000 kg |
| Recommended carrier (lifting capacity) | 100 t |
| Delmag MH 37107 | |
| Suitable diesel pile hammer (max. size) | D80-23 |
| Lead system length max. | 42 m |
| Usable length (with max. size hammer) | 36 m |
| Weight complete * | 26,000 kg |
| Recommended carrier (lifting capacity) | 130 t |
| Delmag MH 41109 | |
| Suitable diesel pile hammer (max. size) | D100-13 |
| Lead system length max. | 48 m |
| Usable length (with max. size hammer) | 40 m |
| Weight complete * | 30,000 kg |
| Recommended carrier (lifting capacity) | 300 t |

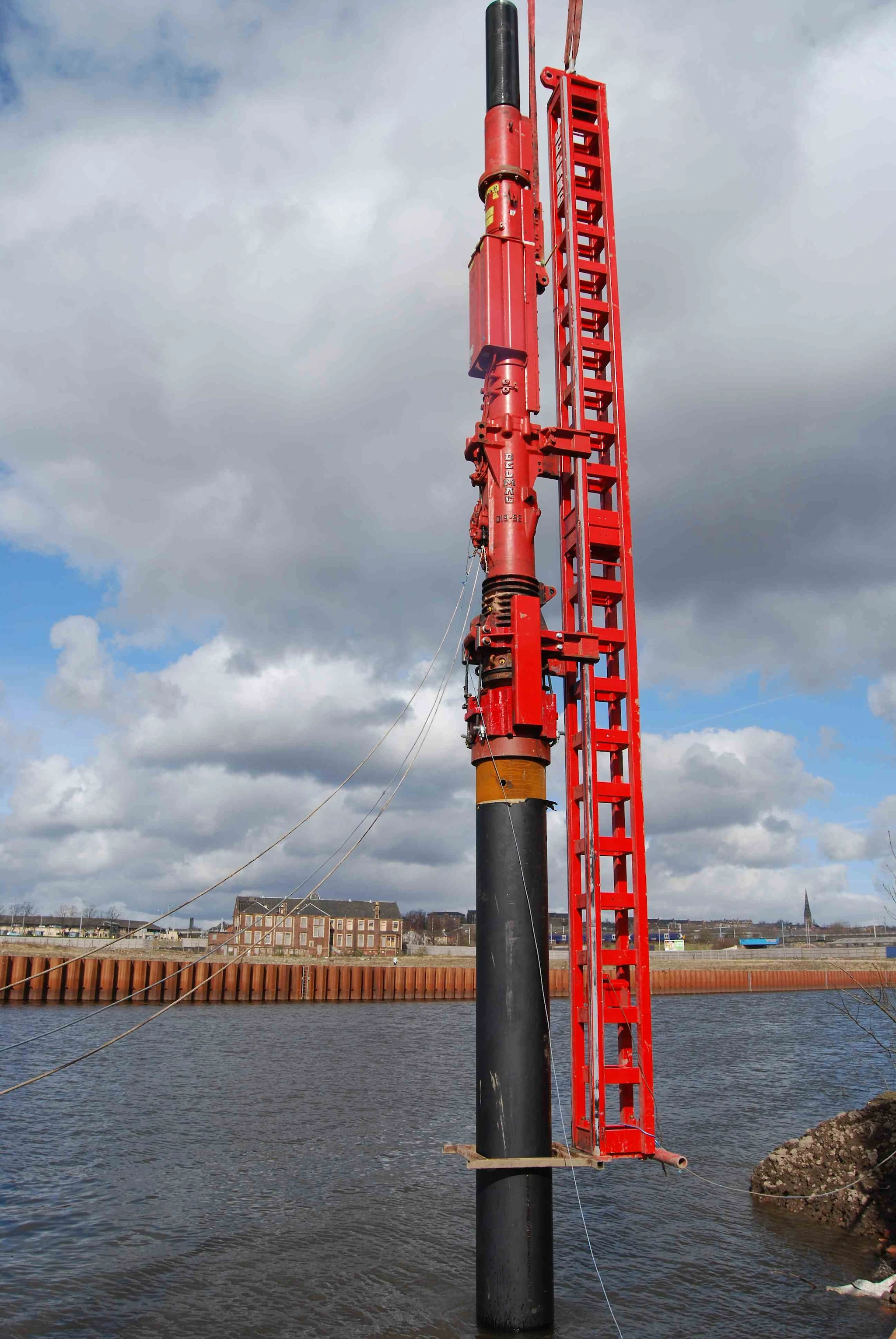

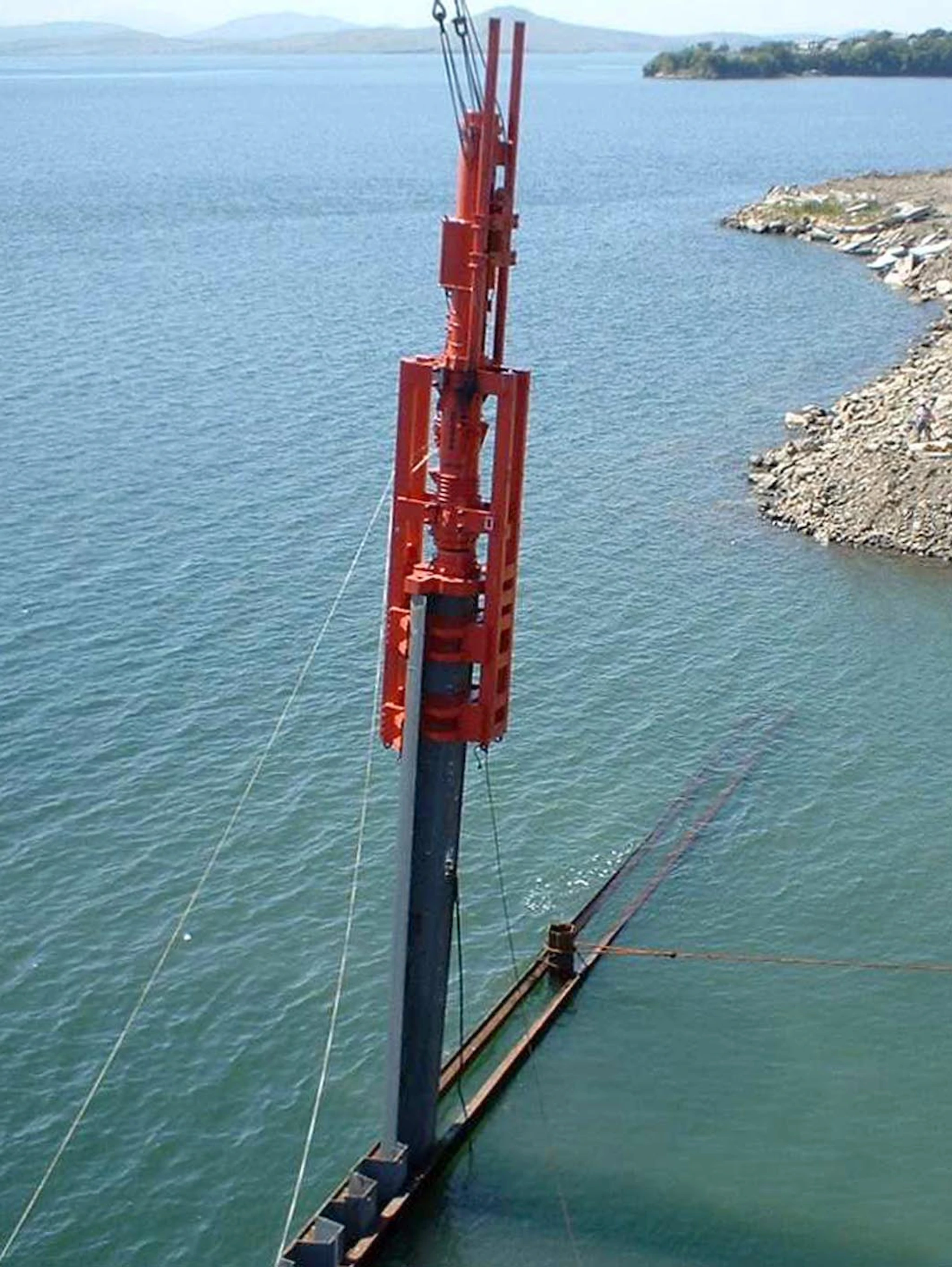

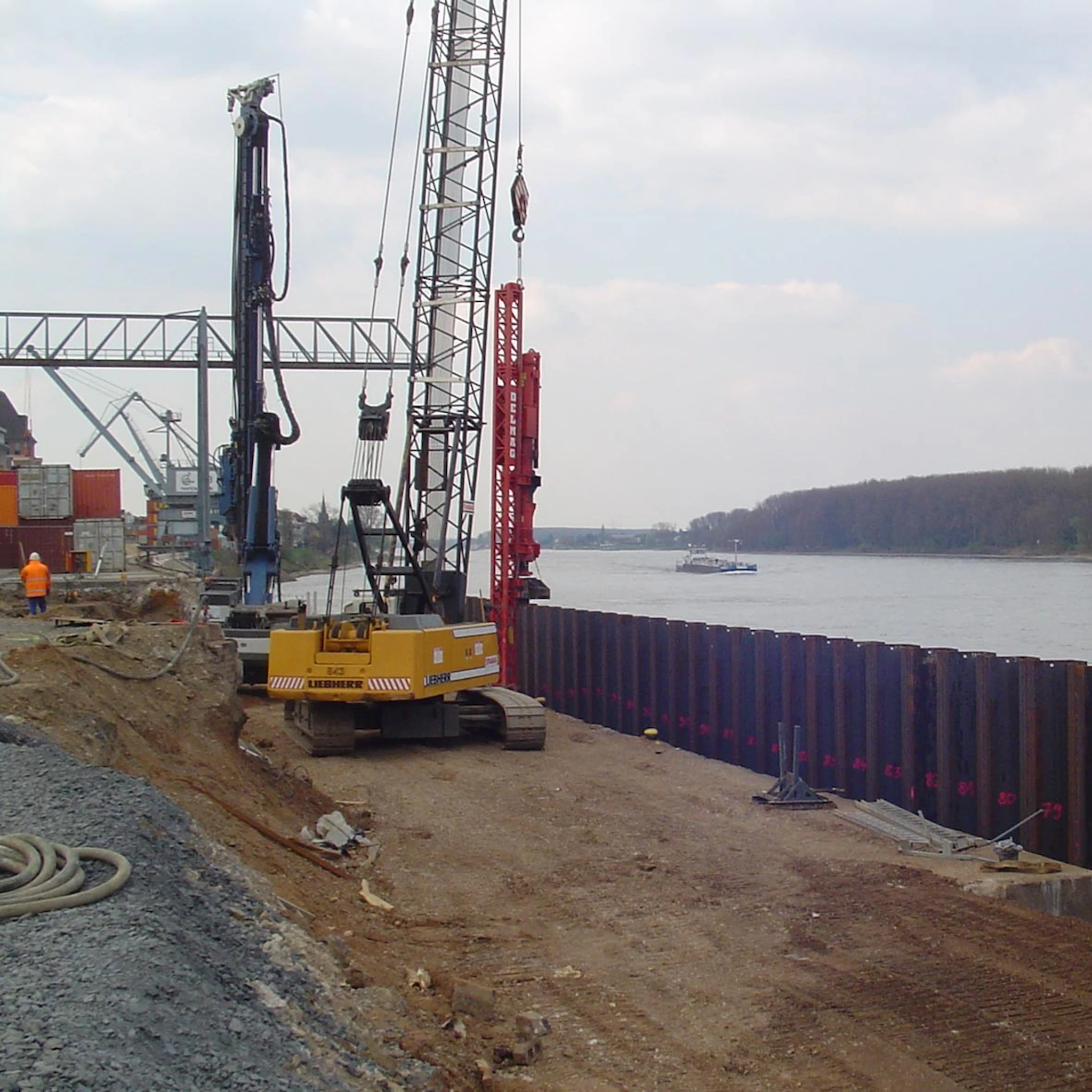

Delmag Swinging Leads (MS)
DELMAG swinging leads can be attached to any crane of the proper capacity and be rotated 360° around its vertical axis. The swinging leads are mainly used for ‘back driving’ of sheet piles, H-piles and pipe piles with diesel impact hammers.
| Model | MS 30102 | MS 32103 | MS 35104 | |
|---|---|---|---|---|
| Suitable diesel pile hammer (max. size) | D12-42 | D30-32 | D62-22 | |
| Lead system length | m | 8 - 20 | 8 - 28 | 10 - 30 |
| Usable length (with max. size hammer) | m | 2 - 14 | 2 - 22 | 4 - 24 |
| Weight of lead system at max. length, without hammer | kg | 2,000 | 4,000 | 5,500 |
| Delmag MS 30102 | |
|---|---|
| Suitable diesel pile hammer (max. size) | D12-42 |
| Lead system length | 8 - 20 m |
| Usable length (with max. size hammer) | 2 - 14 m |
| Weight of lead system at max. length, without hammer | 2,000 kg |
| Delmag MS 32103 | |
| Suitable diesel pile hammer (max. size) | D30-32 |
| Lead system length | 8 - 28 m |
| Usable length (with max. size hammer) | 2 - 22 m |
| Weight of lead system at max. length, without hammer | 4,000 kg |
| Delmag MS 35104 | |
| Suitable diesel pile hammer (max. size) | D62-22 |
| Lead system length | 10 - 30 m |
| Usable length (with max. size hammer) | 4 - 24 m |
| Weight of lead system at max. length, without hammer | 5,500 kg |

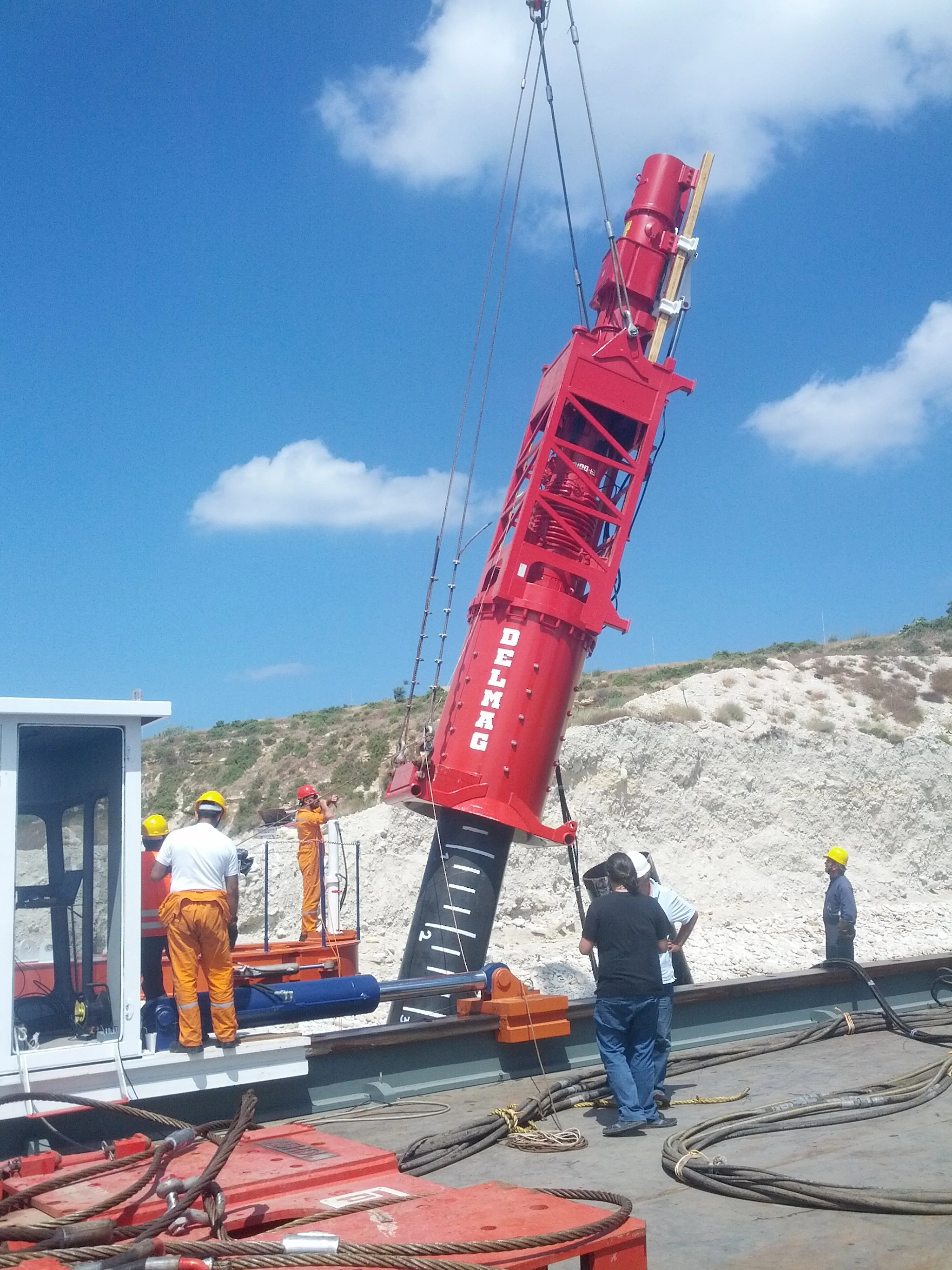

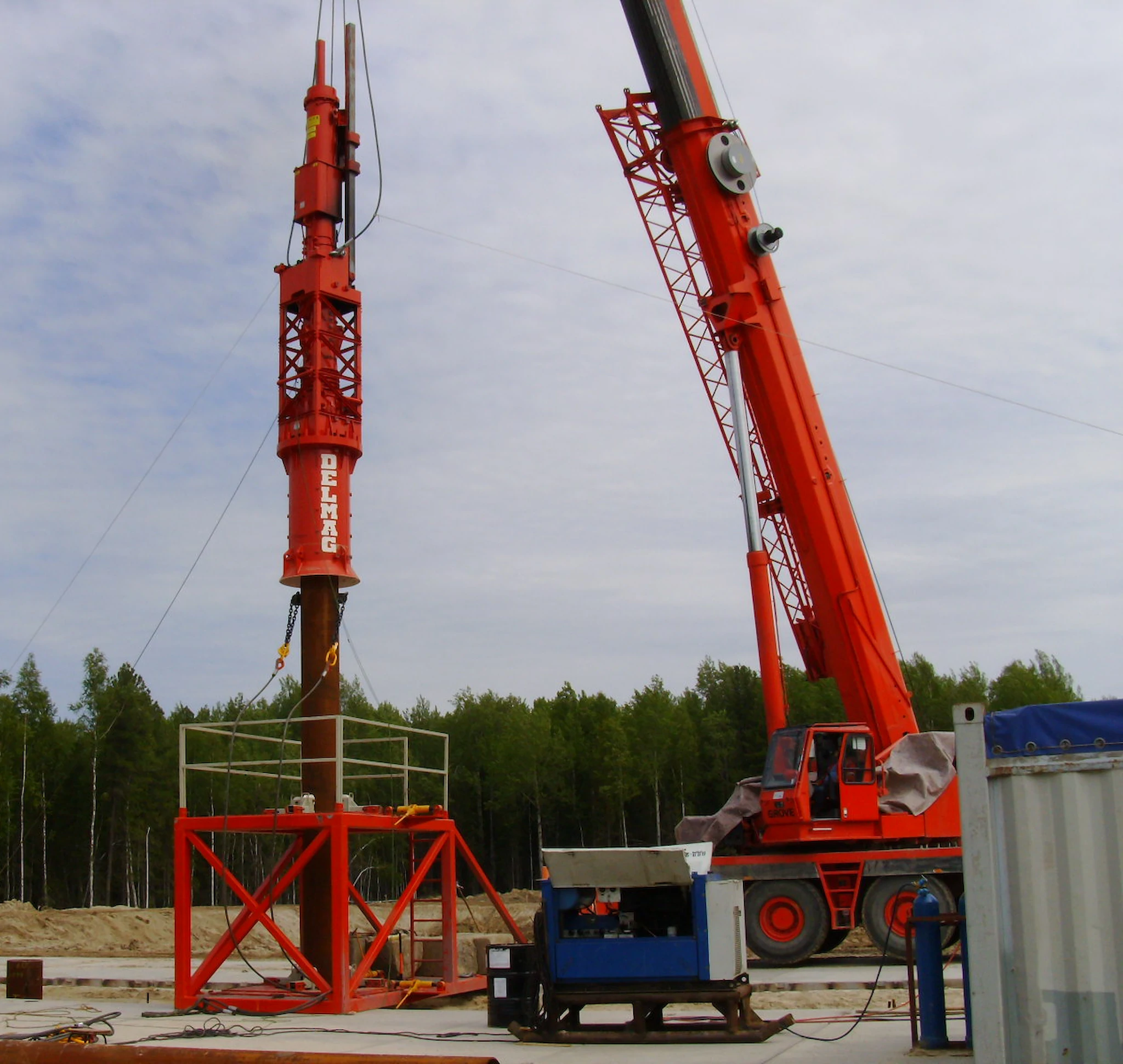

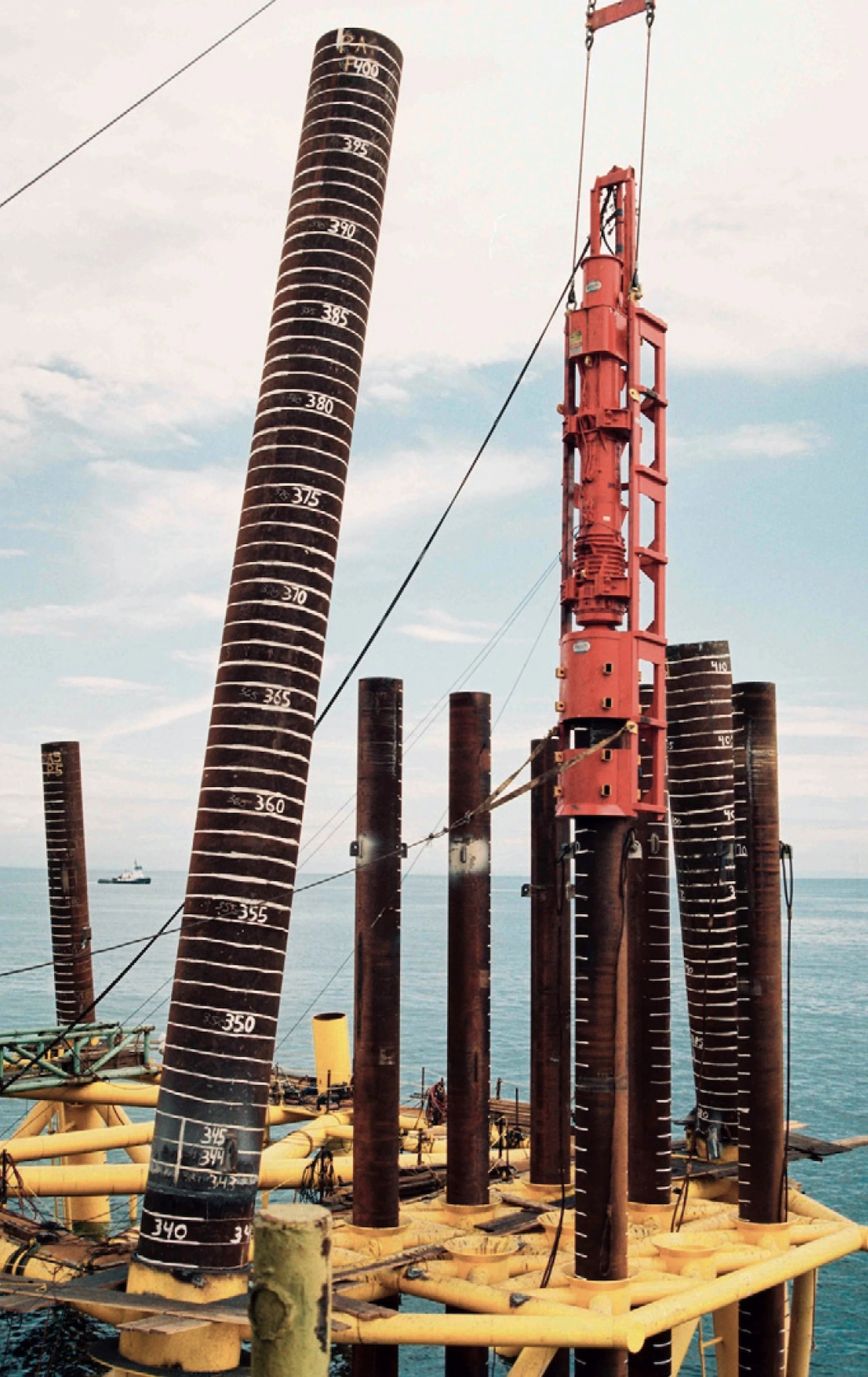

Delmag Rope Suspended Leads (MAR)
DELMAG MAR-type rope suspended leads are mainly used to drive pre-set pipe piles in marine and offshore projects. The lead, together with the hammer, is positioned onto the pile by a crane and then the combined weight is resting on the pile. The MAR-type leads can accommodate hammers with standard mechanical or with hydraulic starting system which is needed for inclined piles.
| Model | MAR 30-30 | MAR 62-48 | MAR 100-60 | MAR 200-72 | MAR 300-84 | |
|---|---|---|---|---|---|---|
| Suitable diesel pile hammer (max. size) | D30-32 | D62-22 | D100-13 | D200-42 | D300-42 | |
| Pile diameter max. | mm | 762 | 1,220 | 1,525 | 1,830 | 2,135 |
| Weight of lead system at max. length, without hammer | kg | 7,000 | 8,500 | 1,000 | 48,000 | 48,000 |
| Delmag MAR 30-30 | |
|---|---|
| Suitable diesel pile hammer (max. size) | D30-32 |
| Pile diameter max. | 762 mm |
| Weight of lead system at max. length, without hammer | 7,000 kg |
| Delmag MAR 62-48 | |
| Suitable diesel pile hammer (max. size) | D62-22 |
| Pile diameter max. | 1,220 mm |
| Weight of lead system at max. length, without hammer | 8,500 kg |
| Delmag MAR 100-60 | |
| Suitable diesel pile hammer (max. size) | D100-13 |
| Pile diameter max. | 1,525 mm |
| Weight of lead system at max. length, without hammer | 1,000 kg |
| Delmag MAR 200-72 | |
| Suitable diesel pile hammer (max. size) | D200-42 |
| Pile diameter max. | 1,830 mm |
| Weight of lead system at max. length, without hammer | 48,000 kg |
| Delmag MAR 300-84 | |
| Suitable diesel pile hammer (max. size) | D300-42 |
| Pile diameter max. | 2,135 mm |
| Weight of lead system at max. length, without hammer | 48,000 kg |
