APE Wick Drain Vibrators
Updated: 19.10.2023

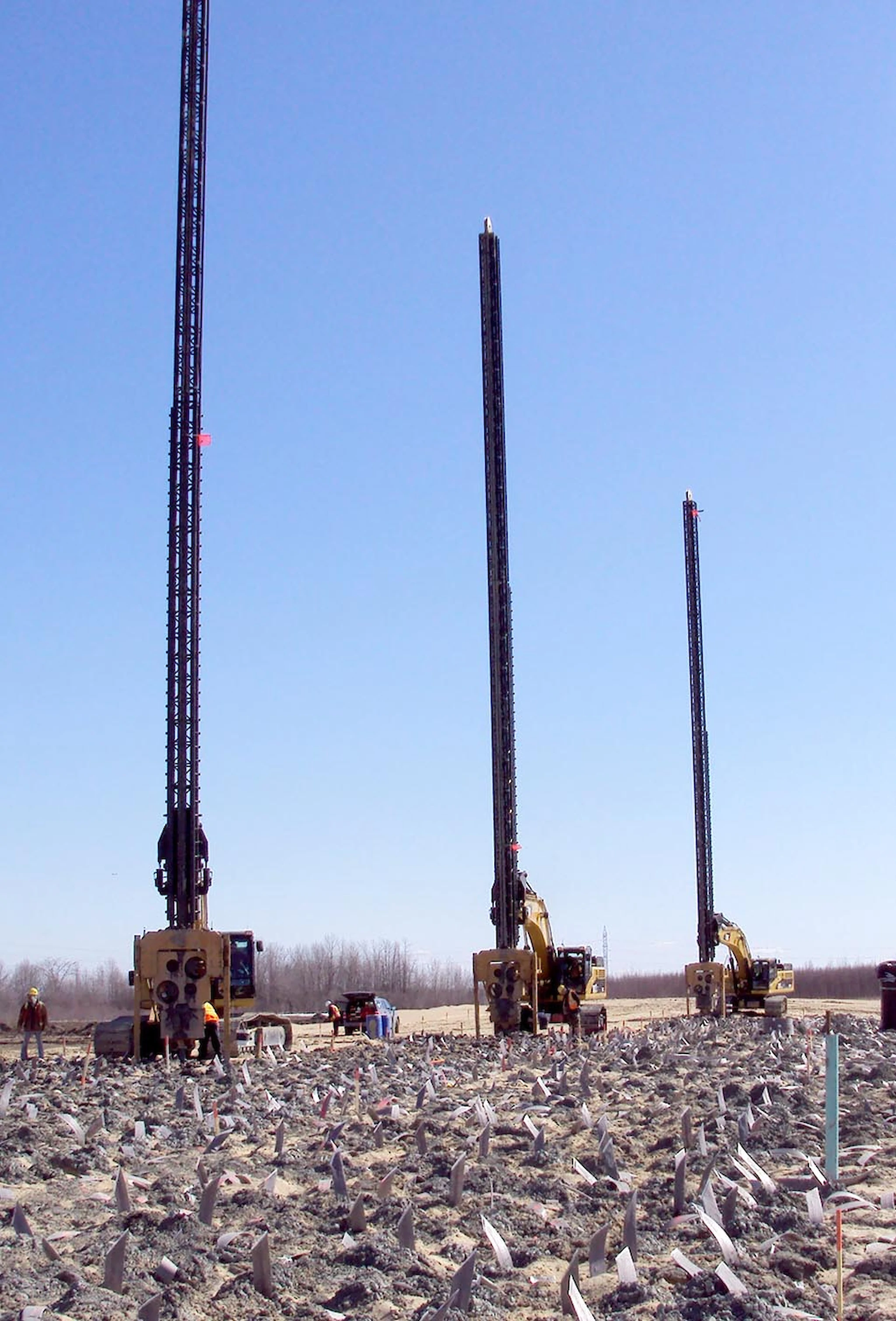

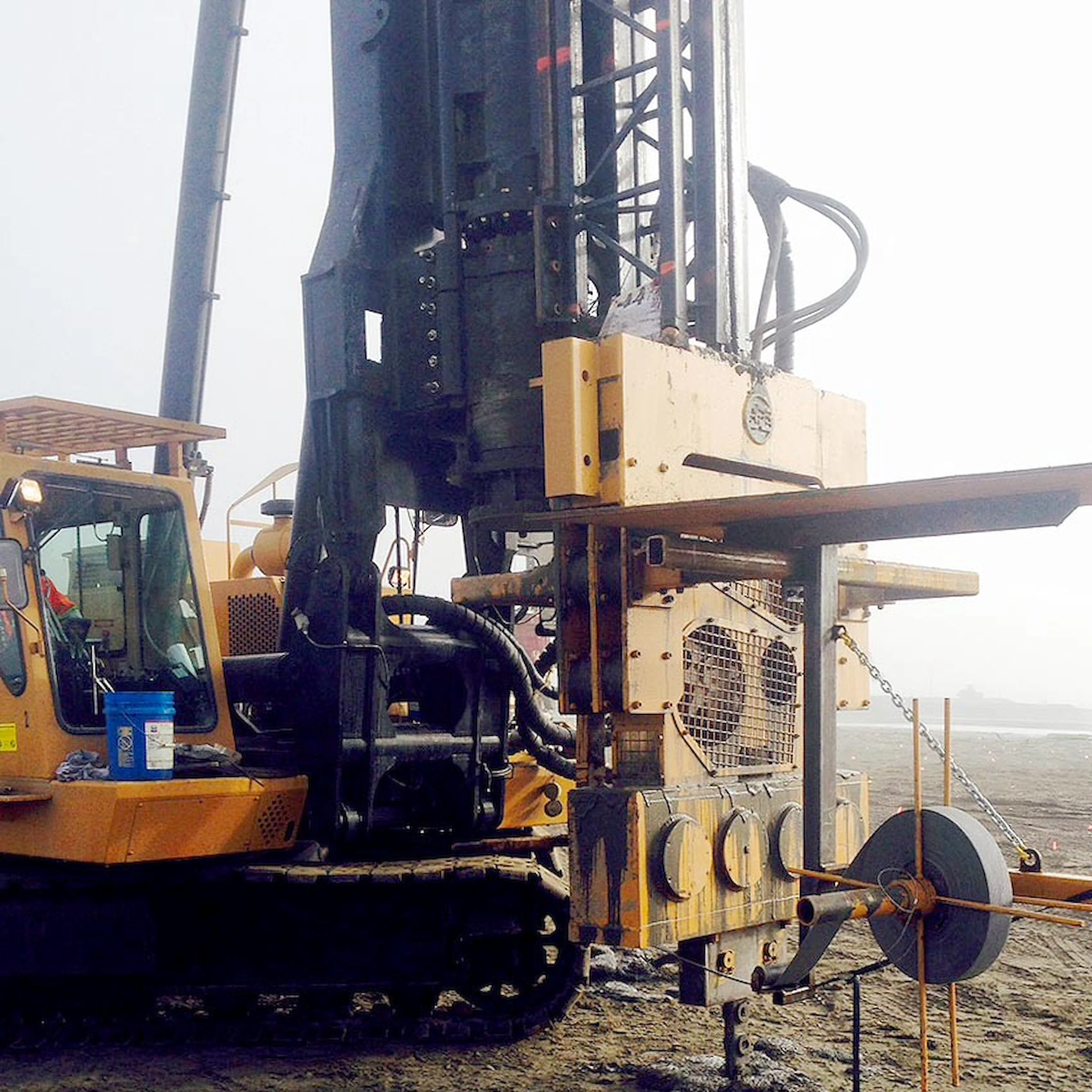

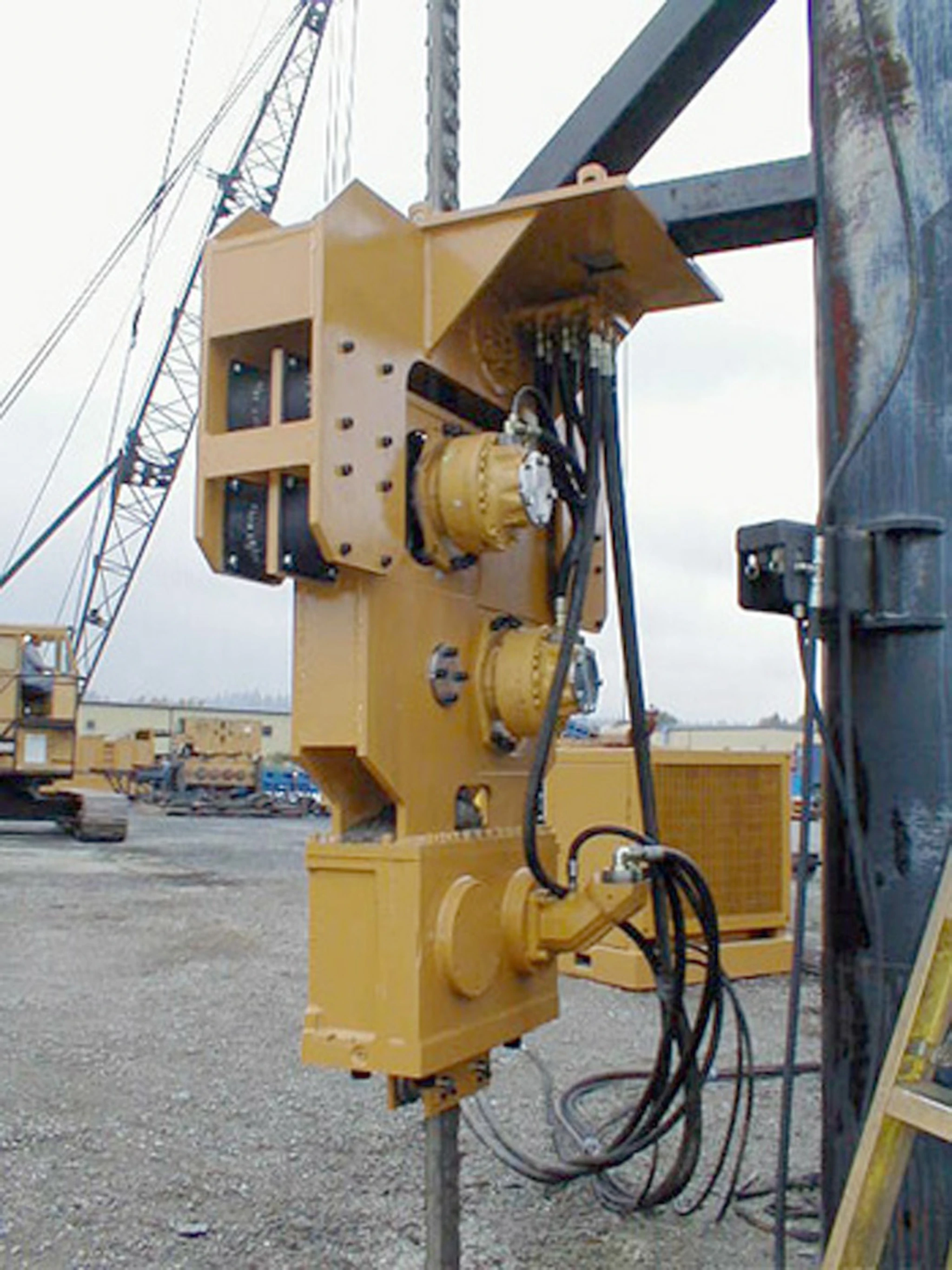

The "bottom drive wick drain vibrator" is the ultimate choice for the installation of long vertical drains in difficult soil. The vibro is mounted to the boom of any hydraulic excavator of sufficient weight and power and includes a mandrel with sprockets, a light weight leader to support the mandrel and the operating console.
Two or four sprocket drives push the mandrel by static force with a speed of up to 100 m/min into the soft soil. If more force is needed to overcome hard ground layers just push one button and vibration is added to the mandrel providing unmatched installation speed and power in every soil.
| Model | 100 | 200 | |
|---|---|---|---|
| Static force | kN | 279 | 274 |
| Dynamic force @ 1650 rpm | kN | 211 | 498 |
| Combined static/dynamic force | kN | 458 | 746 |
| Operating frequency max. | rpm | 1,650 | 1,650 |
| Suspended weight | kg | 3,855 | 4,889 |
| Pressure max. | bar | 380 | 380 |
| Length | mm | 2,179 | 2,134 |
| Width | mm | 1,752 | 1,194 |
| Height | mm | 3,057 | 3,048 |
| APE 100 | |
|---|---|
| Static force | 279 kN |
| Dynamic force @ 1650 rpm | 211 kN |
| Combined static/dynamic force | 458 kN |
| Operating frequency max. | 1,650 rpm |
| Suspended weight | 3,855 kg |
| Pressure max. | 380 bar |
| Length | 2,179 mm |
| Width | 1,752 mm |
| Height | 3,057 mm |
| APE 200 | |
| Static force | 274 kN |
| Dynamic force @ 1650 rpm | 498 kN |
| Combined static/dynamic force | 746 kN |
| Operating frequency max. | 1,650 rpm |
| Suspended weight | 4,889 kg |
| Pressure max. | 380 bar |
| Length | 2,134 mm |
| Width | 1,194 mm |
| Height | 3,048 mm |
