Comacchio Standard Crawler Drill Rigs
The MC line, with its large variety of models, is the best example of Comacchio’s production: its ability to meet market needs whilst taking advantage of innovative techniques that are less costly, more effective, easier and safer for the operators. This led to the creation of a comprehensive range of drilling rigs for civil engineering works such as micropiles, anchors, jet grouting and ground improvement in general.
Thanks to advanced modular hydraulic circuits, the rigs of the MC line can be equipped with a large range of rotary heads and drifters that apply to most types of rotary and rotary-percussive drilling. All machines can be equipped with hydraulic proportional controls or with radio remote control. Since 2011 the drilling rigs are equipped with a new generation remote control that not only includes the ‘traditional’ tramming and drilling functions, but also the machine setup and the rod carousel. The machines can be easily managed from one console, with enhanced efficiency, productivity and security.
The engines mounted on the drilling rigs comply with the current European and American (EPA none Road and CARB) legislation regarding emission values. The MC line drilling rigs can be equipped with a series of innovative, patented systems that focus on operator safety and the simplification and automation of drilling processes on site.
Model | Engine power | Mast feed stroke | Feed force | Retract force | Rotary torque range | Rotary speed range | Clamp range | Weight |
---|---|---|---|---|---|---|---|---|
kW | mm | daN | daN | daNm | rpm | mm | kg | |
MC 6 | 100 | 943 - 3,200 | 5,000 | 5,000 | 450 - 1,500 | 80 - 380 | 45 - 325 | 6,200 - 6,800 |
MC 8 | 86 - 100 | 1,690 - 3,900 | 5,000 | 5,000 | 450 - 1,550 | 70 - 750 | 45 - 325 | 8,200 - 8,900 |
MC 12 | 95 - 115 | 2,500 - 4,000 | 5,500 | 5,500 | 450 - 2,325 | 80 - 290 | 45 - 420 | 11,500 - 13,500 |
MC 14 | 129 | 1,700 - 4,000 | 5,500 | 5,500 | 1,000 - 2,325 | 80 - 290 | 45 - 360 | 13,000 - 15,000 |
MC 15 | 119 | 3,550 - 7,000 | 8,000 | 8,000 | 1,000 - 3,100 | 80 - 380 | 45 - 520 | 14,500 - 16,500 |
MC 16 | 160 | 3,100 - 8,600 | 19,500 | 19,500 | 2,000 - 5,500 | 50 - 210 | 45 - 520 | 15,000 - 16,500 |
MC 20 | 188 - 205 | 4,200 - 4,800 | 9,500 | 9,500 | 1,500 - 3,600 | 80 - 290 | 45 - 430 | 19,500 - 21,500 |
MC 21 | 168 | 4,750 - 7,200 | 8,000 | 8,000 | 1,300 - 3,100 | 50 - 350 | 45 - 360 | 21,000 - 22,000 |
MC 22 | 147 - 168 | 3,450 - 10,200 | 8,000 | 8,000 | 1,300 - 3,100 | 70 - 350 | 45 - 520 | 22,000 - 24,000 |
MC 24 | 205 | 7,000 - 10,200 | 14,000 | 14,000 | 2,400 - 5,500 | 50 - 210 | 45 - 520 | 22,500 - 24,000 |
MC 28 | 188 - 205 | 4,100 - 10,200 | 9,500 - 14,000 | 9,500 - 14,000 | 2,400 - 5,500 | 50 - 210 | 45 - 520 | 26,000 - 28,000 |
MC 30 | 188 - 205 | 13,000 - 16,000 | 10,000 - 15,000 | 10,000 - 15,000 | 1,700 - 5,500 | 50 - 260 | 45 - 520 | 33,000 - 38,000 |
MC 40 | 188 - 205 | 14,300 - 16,000 | 30,000 - 37,000 | 30,000 - 37,000 | 2,700 - 10,000 | 35 - 150 | 60 - 620 | 43,000 - 46,000 |
MC 6 | |
---|---|
Engine power | 100 kW |
Mast feed stroke | 943 - 3,200 mm |
Feed force | 5,000 daN |
Retract force | 5,000 daN |
Rotary torque range | 450 - 1,500 daNm |
Rotary speed range | 80 - 380 rpm |
Clamp range | 45 - 325 mm |
Weight | 6,200 - 6,800 kg |

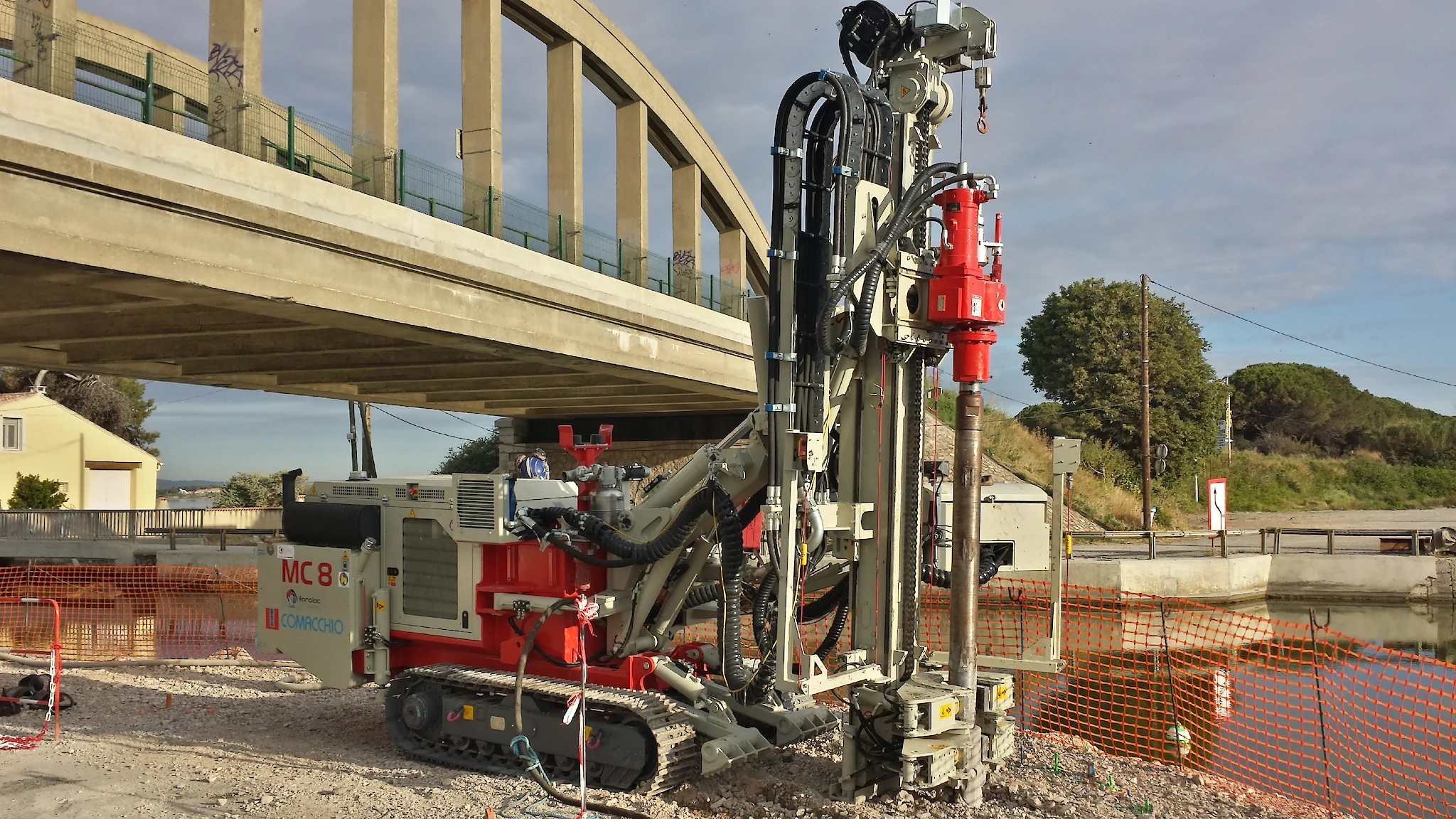

MC 8 | |
Engine power | 86 - 100 kW |
Mast feed stroke | 1,690 - 3,900 mm |
Feed force | 5,000 daN |
Retract force | 5,000 daN |
Rotary torque range | 450 - 1,550 daNm |
Rotary speed range | 70 - 750 rpm |
Clamp range | 45 - 325 mm |
Weight | 8,200 - 8,900 kg |

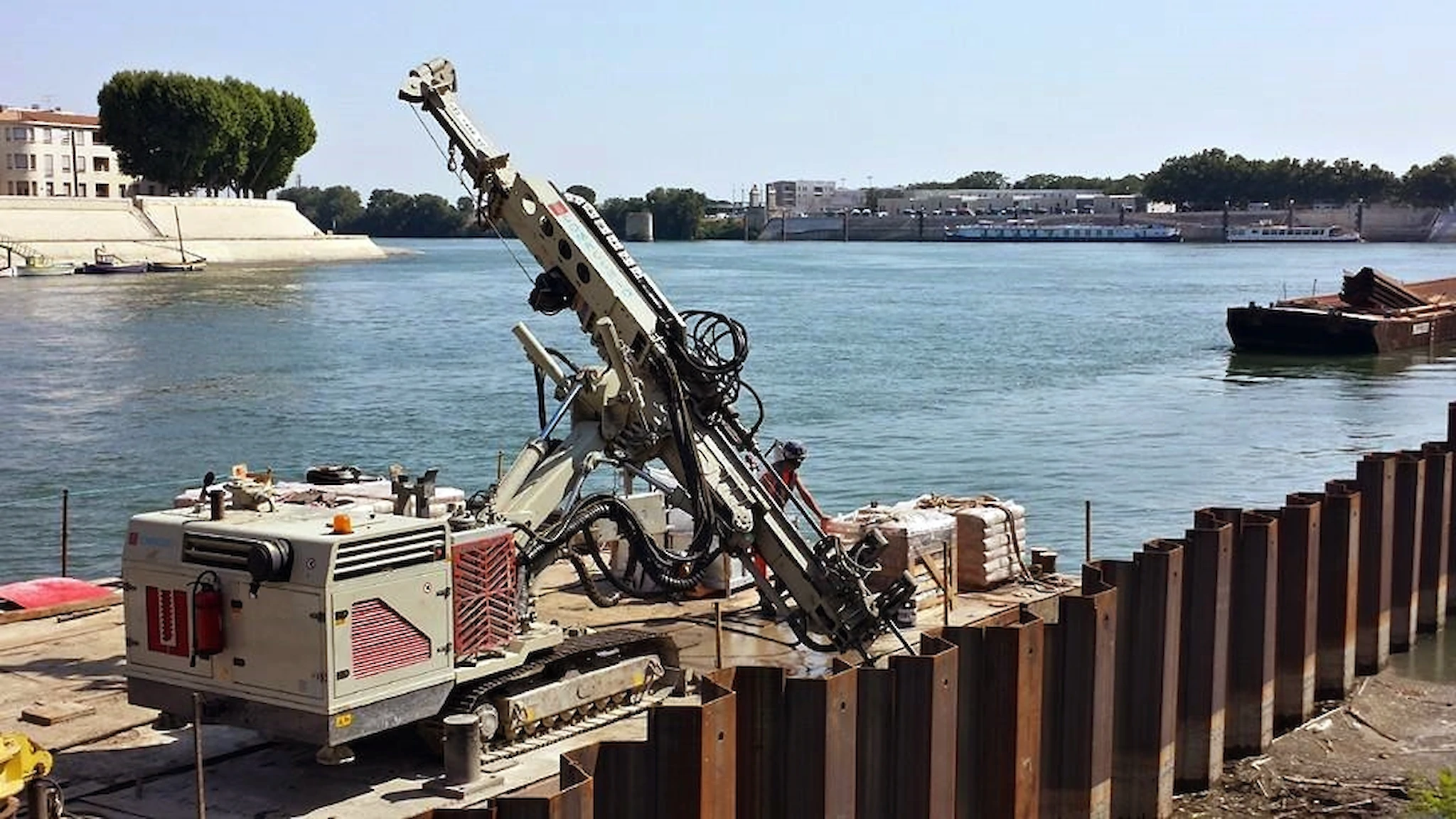

MC 12 | |
Engine power | 95 - 115 kW |
Mast feed stroke | 2,500 - 4,000 mm |
Feed force | 5,500 daN |
Retract force | 5,500 daN |
Rotary torque range | 450 - 2,325 daNm |
Rotary speed range | 80 - 290 rpm |
Clamp range | 45 - 420 mm |
Weight | 11,500 - 13,500 kg |

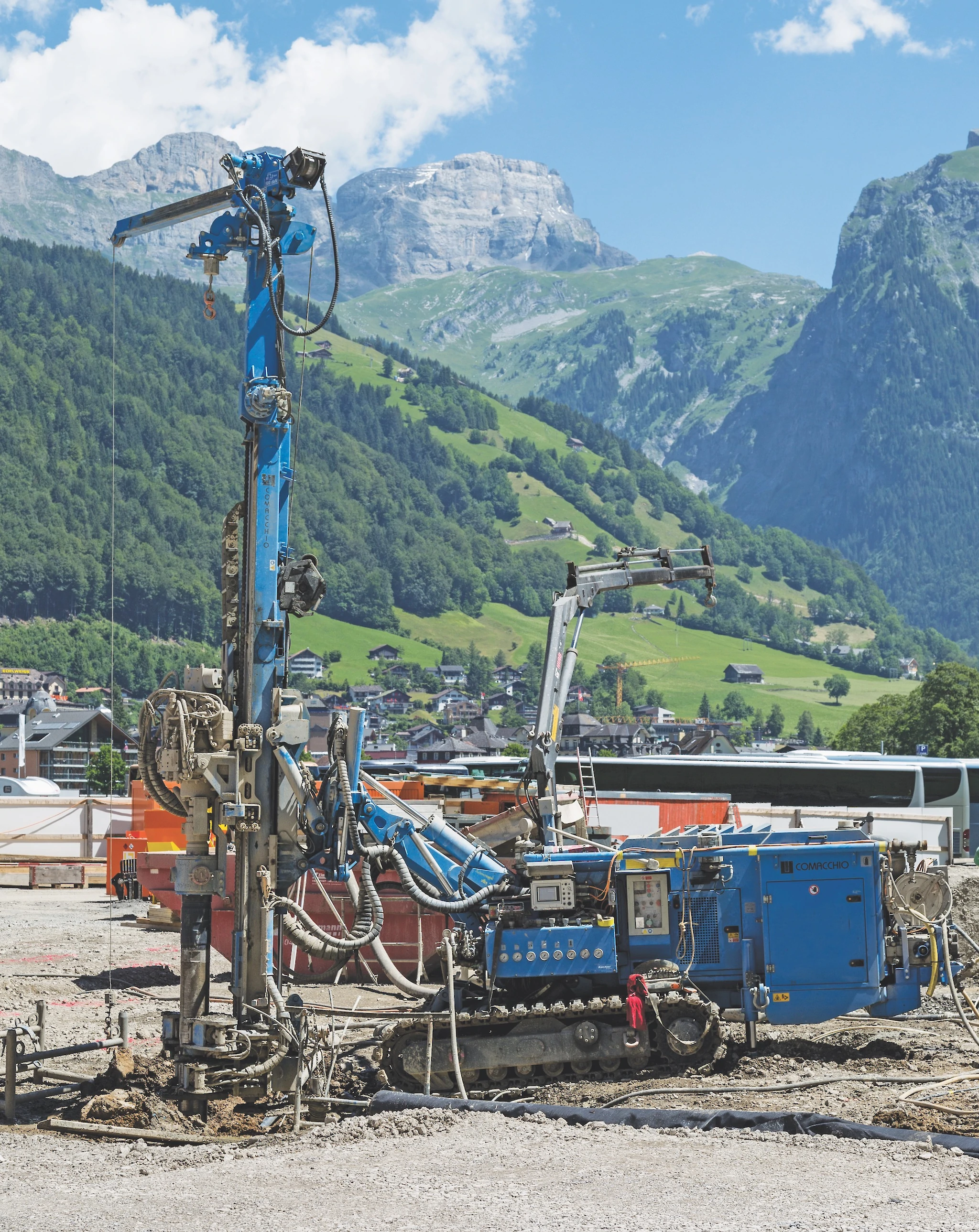

MC 14 | |
Engine power | 129 kW |
Mast feed stroke | 1,700 - 4,000 mm |
Feed force | 5,500 daN |
Retract force | 5,500 daN |
Rotary torque range | 1,000 - 2,325 daNm |
Rotary speed range | 80 - 290 rpm |
Clamp range | 45 - 360 mm |
Weight | 13,000 - 15,000 kg |

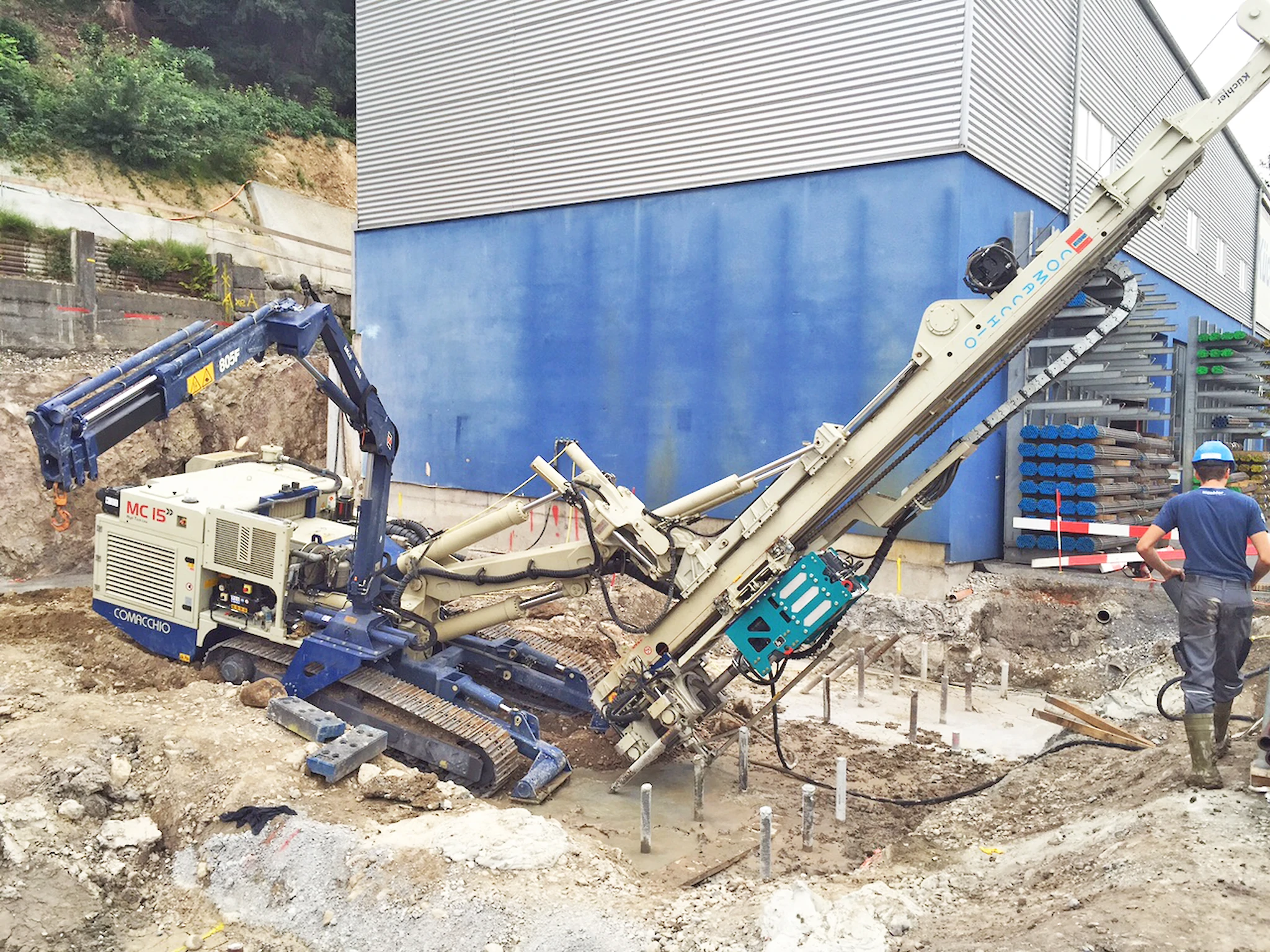

MC 15 | |
Engine power | 119 kW |
Mast feed stroke | 3,550 - 7,000 mm |
Feed force | 8,000 daN |
Retract force | 8,000 daN |
Rotary torque range | 1,000 - 3,100 daNm |
Rotary speed range | 80 - 380 rpm |
Clamp range | 45 - 520 mm |
Weight | 14,500 - 16,500 kg |
MC 16 | |
Engine power | 160 kW |
Mast feed stroke | 3,100 - 8,600 mm |
Feed force | 19,500 daN |
Retract force | 19,500 daN |
Rotary torque range | 2,000 - 5,500 daNm |
Rotary speed range | 50 - 210 rpm |
Clamp range | 45 - 520 mm |
Weight | 15,000 - 16,500 kg |

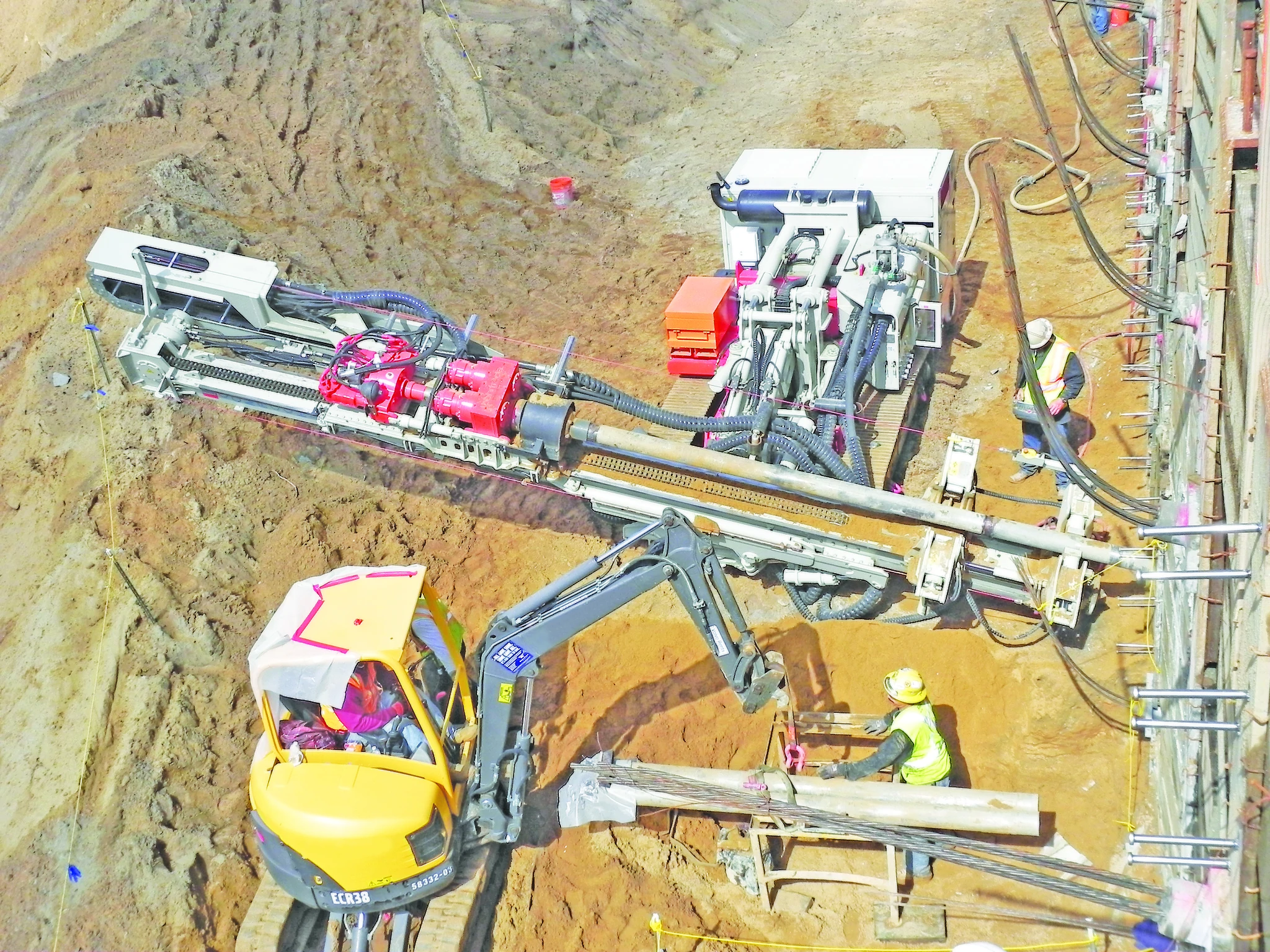

MC 20 | |
Engine power | 188 - 205 kW |
Mast feed stroke | 4,200 - 4,800 mm |
Feed force | 9,500 daN |
Retract force | 9,500 daN |
Rotary torque range | 1,500 - 3,600 daNm |
Rotary speed range | 80 - 290 rpm |
Clamp range | 45 - 430 mm |
Weight | 19,500 - 21,500 kg |

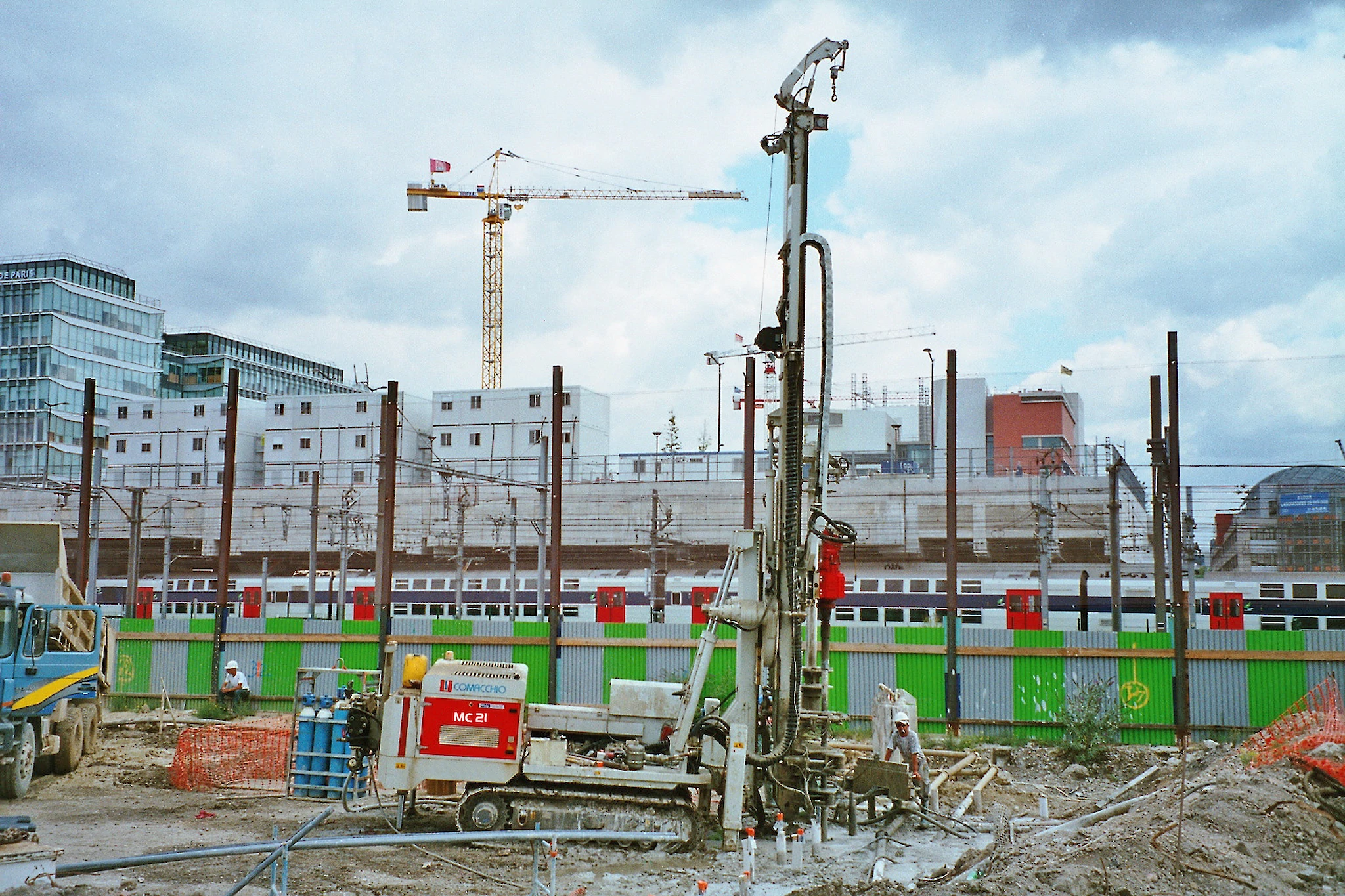

MC 21 | |
Engine power | 168 kW |
Mast feed stroke | 4,750 - 7,200 mm |
Feed force | 8,000 daN |
Retract force | 8,000 daN |
Rotary torque range | 1,300 - 3,100 daNm |
Rotary speed range | 50 - 350 rpm |
Clamp range | 45 - 360 mm |
Weight | 21,000 - 22,000 kg |

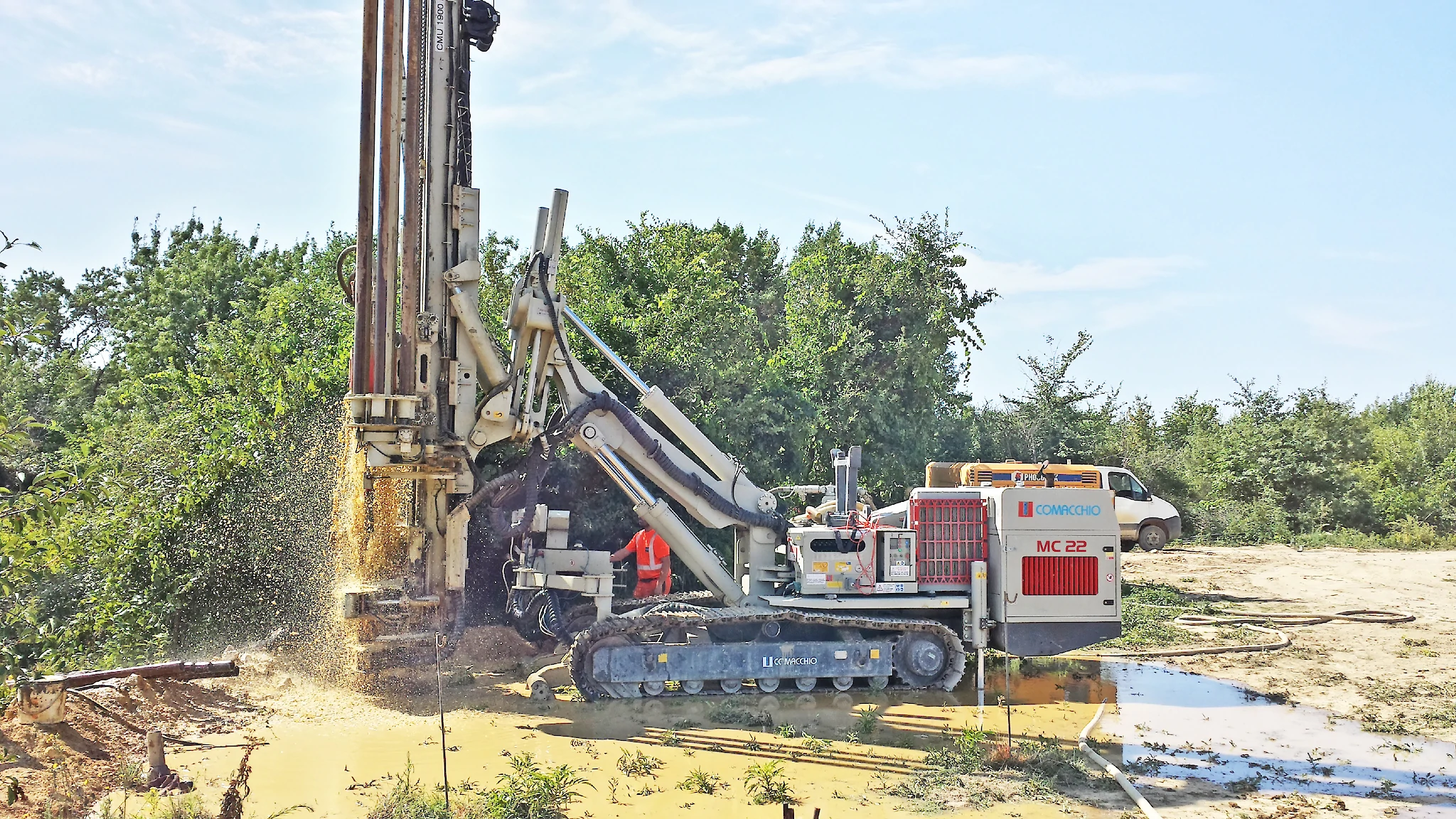

MC 22 | |
Engine power | 147 - 168 kW |
Mast feed stroke | 3,450 - 10,200 mm |
Feed force | 8,000 daN |
Retract force | 8,000 daN |
Rotary torque range | 1,300 - 3,100 daNm |
Rotary speed range | 70 - 350 rpm |
Clamp range | 45 - 520 mm |
Weight | 22,000 - 24,000 kg |
MC 24 | |
Engine power | 205 kW |
Mast feed stroke | 7,000 - 10,200 mm |
Feed force | 14,000 daN |
Retract force | 14,000 daN |
Rotary torque range | 2,400 - 5,500 daNm |
Rotary speed range | 50 - 210 rpm |
Clamp range | 45 - 520 mm |
Weight | 22,500 - 24,000 kg |
MC 28 | |
Engine power | 188 - 205 kW |
Mast feed stroke | 4,100 - 10,200 mm |
Feed force | 9,500 - 14,000 daN |
Retract force | 9,500 - 14,000 daN |
Rotary torque range | 2,400 - 5,500 daNm |
Rotary speed range | 50 - 210 rpm |
Clamp range | 45 - 520 mm |
Weight | 26,000 - 28,000 kg |

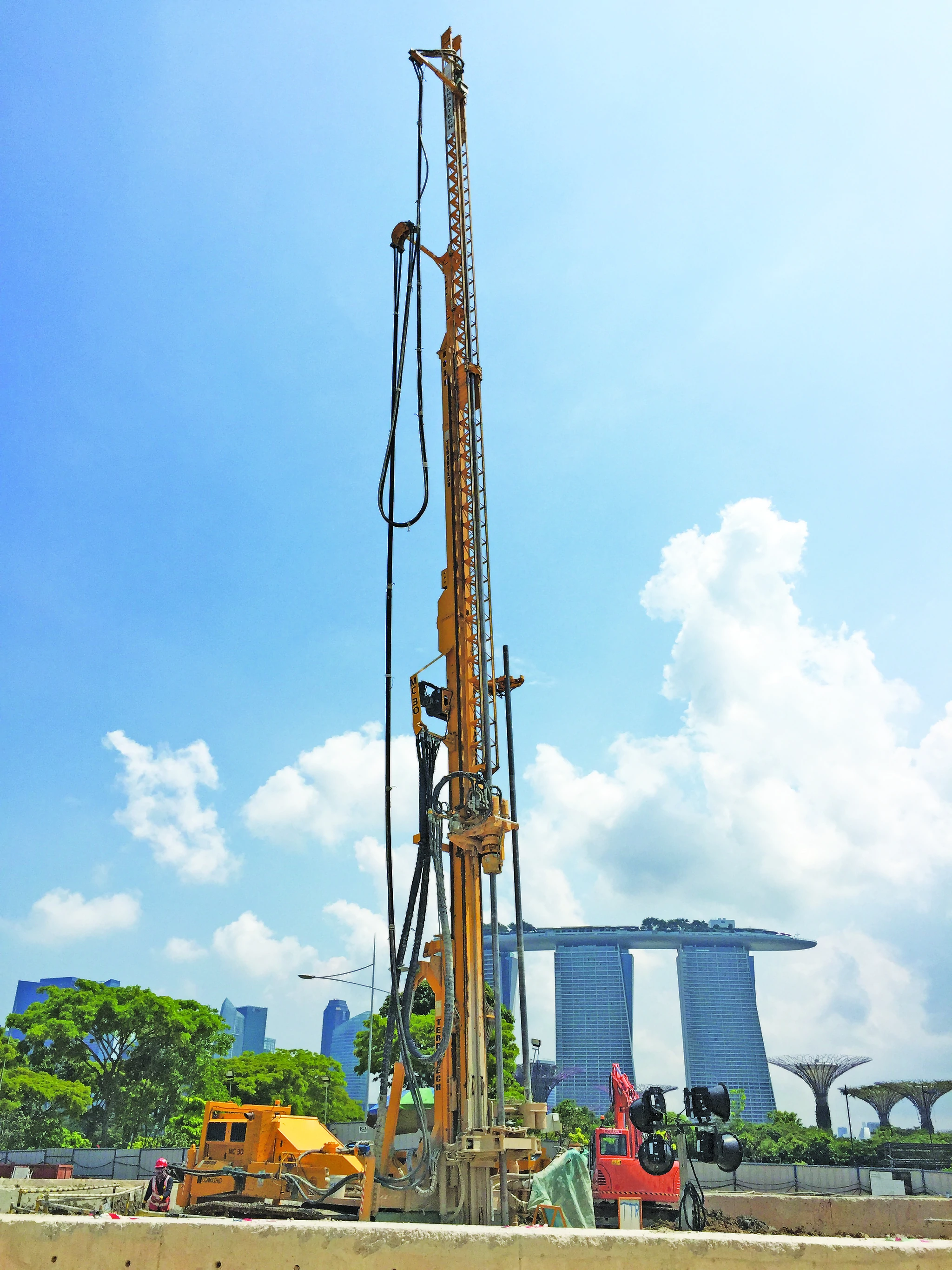

MC 30 | |
Engine power | 188 - 205 kW |
Mast feed stroke | 13,000 - 16,000 mm |
Feed force | 10,000 - 15,000 daN |
Retract force | 10,000 - 15,000 daN |
Rotary torque range | 1,700 - 5,500 daNm |
Rotary speed range | 50 - 260 rpm |
Clamp range | 45 - 520 mm |
Weight | 33,000 - 38,000 kg |

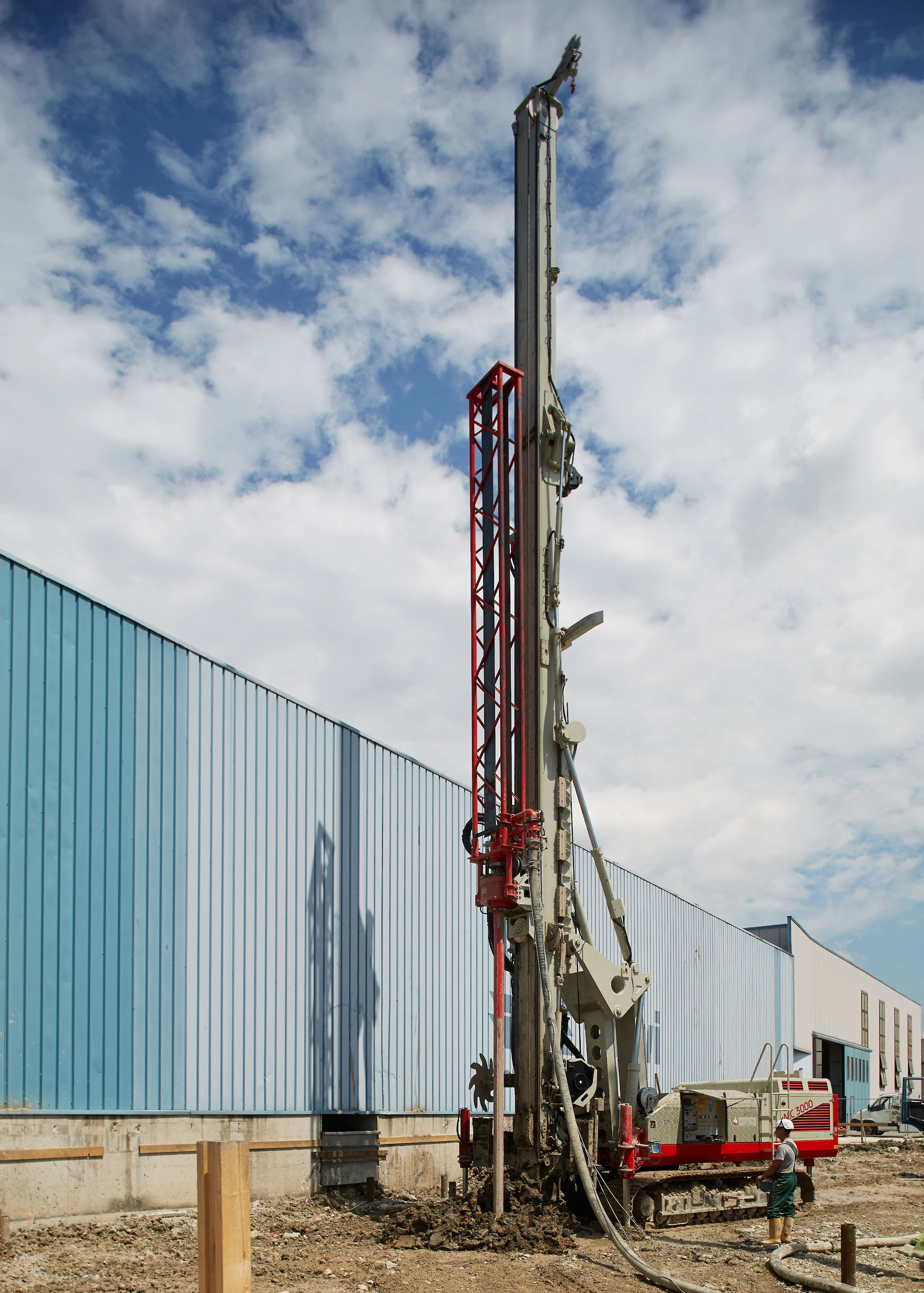

MC 40 | |
Engine power | 188 - 205 kW |
Mast feed stroke | 14,300 - 16,000 mm |
Feed force | 30,000 - 37,000 daN |
Retract force | 30,000 - 37,000 daN |
Rotary torque range | 2,700 - 10,000 daNm |
Rotary speed range | 35 - 150 rpm |
Clamp range | 60 - 620 mm |
Weight | 43,000 - 46,000 kg |
